For active wheelchair users, small changes in wheelchair setup can create surprisingly large differences in handling. One of the most important adjustments is the position of the rear wheels relative to the user, commonly discussed as center of gravity adjustment.
On many adjustable active wheelchairs, the rear axle can be moved forward or backward along the frame. This changes how the combined weight of the user and wheelchair is distributed between the large rear wheels and the small front casters.
Moving the rear axle forward generally places more of the user's weight over the rear wheels. This can make the wheelchair easier to propel and turn, but it also makes the front end lighter and reduces resistance to backward tipping. Moving the axle farther rearward generally increases stability, but more weight is transferred toward the front casters, which can make propulsion and turning require more effort. Wheelchair fitting guidance therefore recommends balancing propulsion efficiency with the individual user's stability and skills.
For buyers comparing adjustable active wheelchairs, center of gravity should therefore be treated as an important performance setting rather than a minor technical specification.
The position of the rear axle affects how much weight is carried by the front casters.
When the rear wheels move forward relative to the seat, the wheelbase becomes shorter and more of the user's body weight is supported by the large rear wheels. Because large rear wheels generally roll more efficiently than small casters, the wheelchair can require less effort to move.
This can improve propulsion efficiency for active users who push their wheelchair throughout the day.
Sunrise Medical notes that moving the axle forward can improve access to the hand rim, reduce rolling resistance and increase propulsion efficiency when the wheelchair remains stable enough for the individual user.
The wheelchair can also become easier to turn.
A shorter wheelbase and lighter front end make directional changes more responsive. For experienced users moving through homes, offices, shopping areas or outdoor pedestrian environments, this can make the wheelchair feel faster and more agile.
Front-caster unloading also affects the ability to clear small obstacles.
Active users often briefly lift the front casters to cross thresholds, pavement joints or small surface changes. A more responsive center-of-gravity setup can make this maneuver easier because less force is required to raise the front of the wheelchair.
However, there is a trade-off.
As the rear wheels move farther forward, the wheelchair becomes easier to tip backward. Manufacturer manuals specifically warn that forward axle adjustment increases rearward tipping risk and recommend making changes gradually and checking stability before normal use.
This is why the most aggressive axle position is not automatically the best position.
An experienced active wheelchair user with strong balance skills may prefer a more responsive setup, while another user may require additional rearward stability.
Moving the rear axle backward produces the opposite effect.
The wheelbase becomes longer, the front casters carry more weight and the wheelchair becomes less likely to tip backward. This can provide greater confidence for users who are new to active wheelchairs or who require a more conservative setup.
The increased stability can be useful when traveling on ramps, slopes or during movements where the user's upper body shifts backward.
However, greater stability normally comes with additional propulsion effort.
With more weight resting on the front casters, the wheelchair may feel heavier during acceleration and turning. Research and clinical guidance on manual wheelchair configuration show that rear axle position changes weight distribution, rolling resistance and the mechanical demand placed on the user during propulsion.
Wheel access can also change.
If the rear axle is positioned too far behind the user, the hands may need to reach farther backward to begin each push. This can shorten the effective pushing stroke and create a less efficient propulsion position.
For someone who pushes thousands of times during a normal day, seemingly small differences in wheel position can become important.
This is one reason active wheelchairs often provide more adjustment than basic transport chairs.
The goal is not simply to create the most stable chair possible. It is to find a setup that provides enough stability while allowing efficient access to the rear wheels and comfortable propulsion.
User body position must also be considered. Height, body mass, trunk control, seat angle and cushion thickness can all change the overall center of gravity of the person-wheelchair system.
For this reason, two users in the same wheelchair model may need very different rear axle positions.
Center of gravity does not work independently from the rest of the wheelchair.
Changing rear axle position can affect wheel locks, caster alignment, seat height relationships and other aspects of wheelchair geometry. Manufacturer guidance recommends checking related settings whenever significant center-of-gravity changes are made.
Seat position also matters.
A user sitting farther back naturally places more body mass toward the rear wheels, while a forward sitting position can increase loading on the front casters. Backrest angle and seat slope can further change body position relative to the axle.
Wheel camber is another important factor. Greater camber can improve lateral stability and push-rim access, but also increases overall wheelchair width.

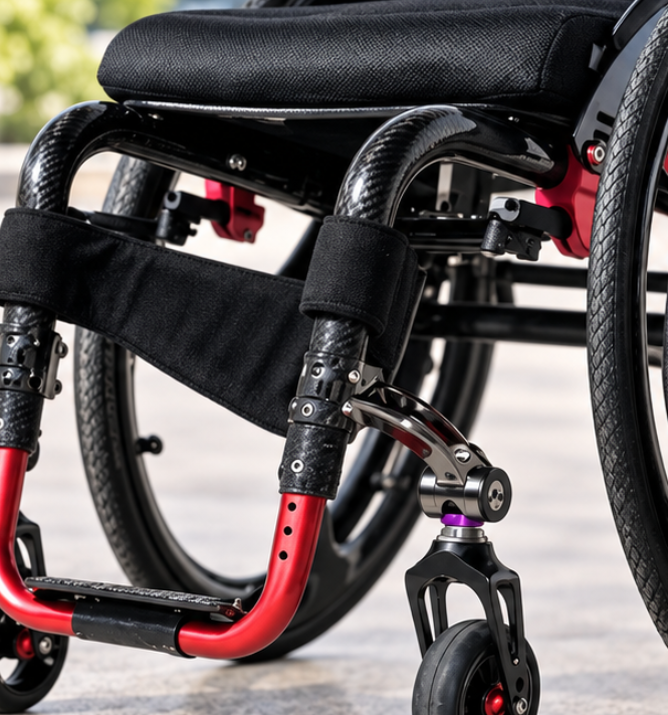

Caster size and front fork angle influence steering response, while footrest position can affect both body posture and the overall dimensions of the chair.
The best active-wheelchair setup therefore comes from considering all these variables together.

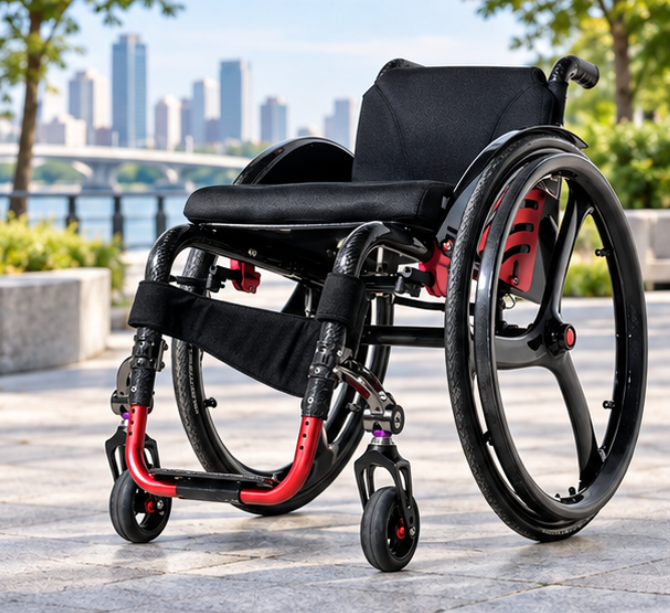

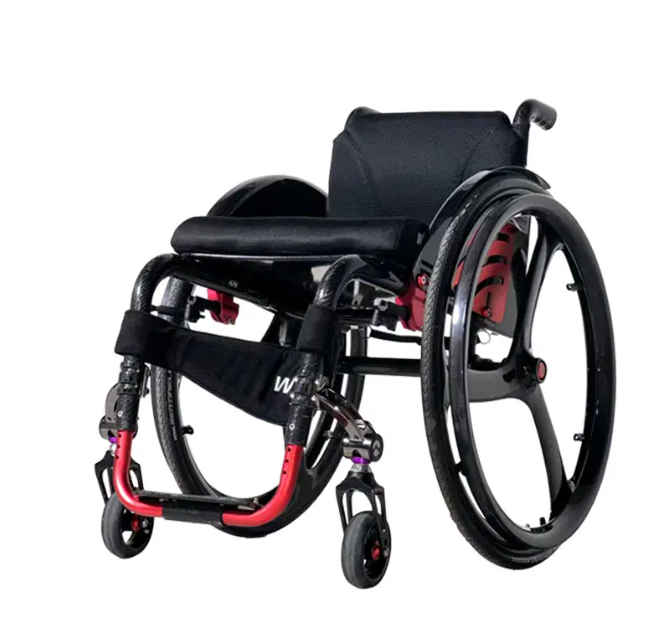

Wisking's 8806 and 8806PLUS all-carbon-fiber active wheelchairs provide a good example of this approach. The product specifications list center of gravity among the adjustable components, together with backrest height, pedal height, guard-plate angle, front-wheel angle and front-fork height. The models use 24-inch quick-release carbon-fiber rear wheels, adjustable front forks and a foldable carbon-fiber backrest. Wisking lists an approximately 11 kg net weight and 125 kg load capacity for this product family.
That combination of lightweight construction and adjustable geometry allows the wheelchair to be configured around different users instead of forcing every customer into one fixed handling setup.
For distributors and rehabilitation equipment buyers, center-of-gravity adjustment is therefore an important feature to explain. Customers may initially focus on carbon fiber, weight or appearance, but axle position can have an equally important effect on how the wheelchair actually feels.
Any meaningful axle or center-of-gravity adjustment should be made carefully, ideally with an experienced wheelchair professional or trained fitter. A more responsive setup can also increase tipping risk, so stability should be reassessed after changes.
Center of gravity adjustment can significantly change the handling of an active wheelchair.
Moving the rear axle forward generally makes the front end lighter, improves maneuverability and can reduce the effort required for propulsion. Moving the axle rearward generally provides greater rearward stability but can place more weight on the front casters and make the wheelchair harder to push and turn.
Neither position is universally better.
The correct setup depends on the user's experience, balance, body position, propulsion technique and daily environment.
For an adjustable active wheelchair such as the Wisking 8806 series, center of gravity should be considered together with rear wheel position, caster setup, backrest height, footrest position and other geometry adjustments.
A properly configured center of gravity can help transform a lightweight wheelchair from simply being easy to carry into a mobility system that feels responsive, efficient and closely matched to the individual user.
