A wheelchair trailer, also called an electric wheelchair attachment or wheelchair handcycle, allows a compatible manual wheelchair to gain powered mobility without replacing the user's existing chair. Once connected to the front of the wheelchair, the attachment adds a motor, battery, steering system, front wheel, controls, and braking components.
For active wheelchair users, this can provide a flexible combination of manual and powered mobility. The user can continue using a familiar lightweight wheelchair indoors and attach the powered unit when longer outdoor travel, shopping, sightseeing, or community journeys require additional assistance.
Brushless motors are increasingly relevant in this product category because they eliminate the carbon brushes used for mechanical commutation in traditional brushed DC motors. Industrial motor manufacturers identify reduced brush maintenance, lower mechanical wear, and high efficiency as common advantages of brushless DC technology.
However, buyers should not choose a wheelchair trailer simply because the product description says “brushless motor.” Motor power, controller quality, battery capacity, wheel design, braking, wheelchair compatibility, attachment structure, and after-sales support should all be evaluated together.
Motor specification is one of the first items buyers compare, but the largest wattage is not automatically the best choice.
The correct motor depends on where the wheelchair trailer will be used.
A compact attachment intended for shopping centers, urban sidewalks, hotels, and smooth community paths may not require the same motor output as a large-wheel outdoor model used on slopes or longer recreational routes.
Wisking's Q6 Smart Driven Electric Handcycle, for example, uses a 180W brushless motor, an 8-inch solid tire, and a 36V/10Ah lithium battery. The product is listed at approximately 9 kg net weight including battery, with a stated range of up to 35 km.
A different Wisking model, the Q1 portable wheelchair handcycle, uses a 300W brushless motor, 12-inch solid tire, 36V/15Ah lithium battery, disc brake, and a listed range of up to 30 km.
These two products illustrate why motor wattage should be evaluated in context.
The Q6 prioritizes compact dimensions and low weight, while the larger Q1 uses a bigger wheel, stronger motor, and larger battery system.
Control quality also matters.
A mobility attachment should provide predictable acceleration rather than sudden power delivery. Elderly users or people new to powered attachments may especially value smooth low-speed control.
Brushless motors use electronic commutation rather than physical brushes, allowing the controller to regulate motor operation electronically. Motor manufacturers note that brushless systems can provide stable speed control under changing load conditions when properly designed.
For buyers, this means the motor and controller should be treated as one system.
Ask not only:
“How many watts does the motor have?”
Also ask:
How many speed levels are available?
Is acceleration smooth?
How does the attachment behave at low speed?
What incline is the complete system designed to handle?
How does performance change under heavier user loads?
The best motor is the one correctly matched to the wheelchair, user, battery, wheel size, and terrain.
A brushless motor can be efficient, but the battery still determines how long powered assistance remains available.
Lithium batteries are common in wheelchair trailers because they provide useful capacity without adding as much weight as many traditional battery technologies.
For a detachable attachment, this matters because users or caregivers may need to lift the powered unit into a vehicle.
Battery capacity should match actual travel requirements.
A user who mainly travels around shopping centers or nearby community roads may be satisfied with a smaller battery. Someone planning long outdoor journeys may prefer greater reserve capacity.
Published range should always be treated as an estimate. User weight, road gradient, speed, tire type, temperature, and driving behavior can all affect real-world distance.
Removable battery design can also improve convenience. Users may be able to charge the battery separately or reduce attachment weight before loading it into a vehicle.
Braking is equally important.
Once a manual wheelchair is converted into a powered system, the user needs reliable control over both acceleration and stopping.
Wisking's Q1 brushless handcycle uses a disc brake, illustrating the type of dedicated braking system commonly used on powered front attachments.
Buyers should check how the brake is operated, whether the controls are easy to reach, and how the product behaves on slopes.

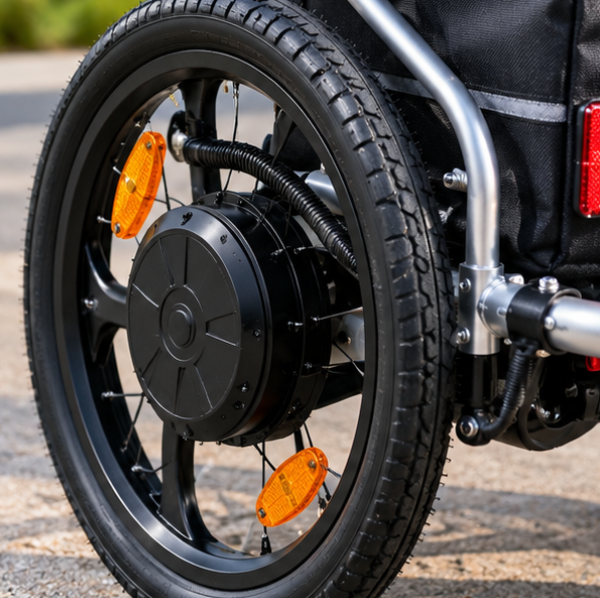

Wheel size also has a major effect on performance.
Small wheels support compact packaging and easy transportation, while larger wheels generally cope better with pavement joints, rough paths, and minor obstacles.
Wisking's Q6 uses an 8-inch solid tire, while the Q1 uses a 12-inch solid tire.
This difference creates two distinct product directions:
Small wheel: compact, lightweight, easier to transport.
Larger wheel: better suited to longer outdoor travel and changing surfaces.
Neither configuration is automatically better. Buyers should choose according to real terrain rather than appearance.
One of the most important questions is often overlooked:
Will the wheelchair trailer actually fit the user's manual wheelchair?

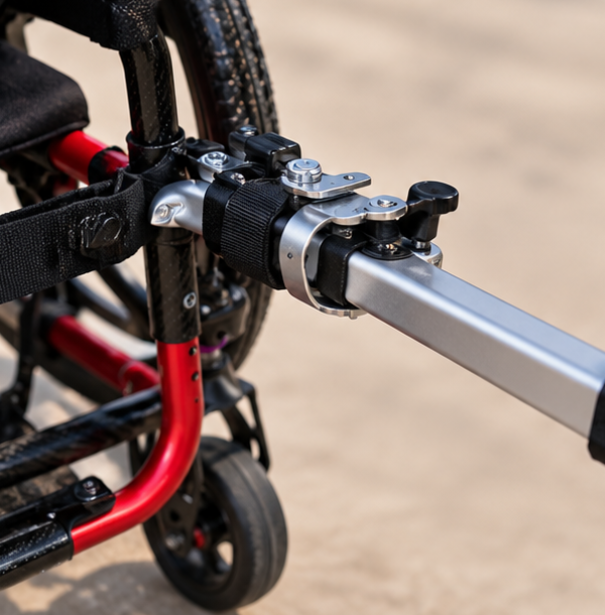

Manual wheelchair frames vary in tube diameter, front-frame geometry, footrest design, seat height, and overall construction.
The mounting system must connect securely without interfering with the user's legs, casters, or normal seating position.
Wisking also sells active wheelchairs designed to connect with its wheelchair trailer products. Its 8803 active wheelchair product page specifically states that the wheelchair can connect with the company's trailer to become a powered mobility system.
For distributors, this type of compatibility information should be clearly documented.
Buyers should ask the supplier for:
compatible wheelchair frame dimensions;
mounting bracket specifications;
maximum user weight;
installation instructions;
connection and removal procedure;
recommended tire pressure or maintenance;
replacement-part availability.
Portability should also be evaluated carefully.
A wheelchair trailer is often selected specifically because it is easier to transport than a complete power wheelchair. Net weight, battery weight, package dimensions, detachable components, and handlebar folding therefore matter.
The Q6, for example, is listed at approximately 9 kg including battery, while the Q1 is approximately 17 kg.
Those numbers represent very different lifting requirements.
For B2B buyers and overseas distributors, service support becomes equally important.
Brushless motors remove brush replacement from routine motor maintenance, but the complete product still contains bearings, controllers, brakes, batteries, tires, connectors, throttles, wiring, and mounting parts.
Wisking states that it focuses primarily on developing wheelchair trailers and active wheelchairs, and its after-sales information includes warranty provisions for motor-brake electrical functions while treating items such as batteries and tires as wear-related or separately warranted components.
This means a professional buyer should evaluate not only the initial unit price but also:
spare parts, technical documentation, controller availability, battery replacement, brake parts, and warranty procedures.
A low-cost attachment can become expensive if replacement components are difficult to obtain.
A brushless motor wheelchair trailer can provide an effective way to combine a manual wheelchair with powered assistance, particularly for shopping, outdoor mobility, travel, and longer community journeys.
Brushless motor technology offers useful advantages such as eliminating brush wear and supporting efficient electronic motor control, but the motor should never be evaluated alone.
Buyers should compare motor output, controller behavior, lithium battery capacity, braking, wheel diameter, wheelchair compatibility, total weight, mounting design, and after-sales support.
Compact models such as Wisking's Q6 may suit users who prioritize lightweight portability, while larger brushless handcycles such as the Q1 can provide stronger power and a larger front wheel for broader outdoor use.
For distributors and end users alike, the best brushless wheelchair trailer is not simply the model with the highest motor power. It is the complete powered attachment that matches the user's wheelchair, travel environment, transportation requirements, and long-term service needs.
